VQ WindJet™ - How it Works

VQ WindJet components are engineered to perform seamlessly for maximum results. All components are manufactured to the strictest quality control. Below is how they work together.

Turbine converts wind power to rotational power

Turbine -Converts wind power to rotational power

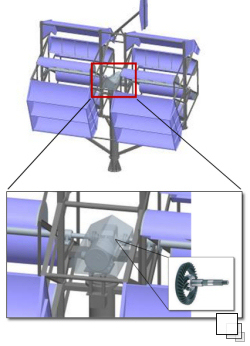

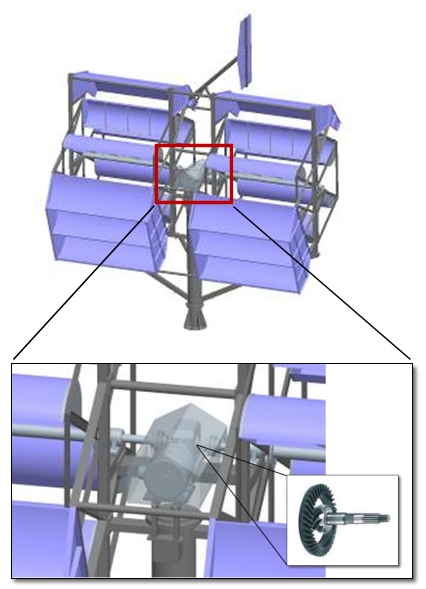

  • Innovative design to achieve high turbine efficiency
  • Simplified mechanical structure to improve efficiency and enhance stability
  • Slow rotor speed for low noise, increase in turbine life, and no avian problems
  • Gearbox (4.2:1 Hypoid Bevel), 200,000 hr lifetime, 95% efficiency.
  • Simple maintenance and ease of repair



Generator -Converts rotational power to electrical power

Generator -Converts rotational power to electrical power

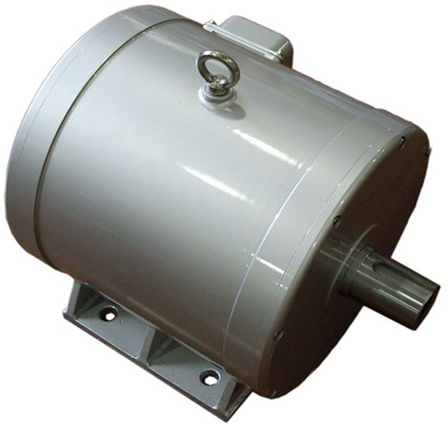

  • Permanent Magnet Synchronous Generators
  • Low start up speed due to cogging and resistive torque design
  • High quality standard components to sustain all types of extreme environments
  • Maximum efficiency greater than 92%
  • Excellent heat dissipation due to use of aluminum alloy outer frame
  • Low mechanical resistance energy loss



Inverter -Converts DC to AC

Inverter -Converts DC to AC

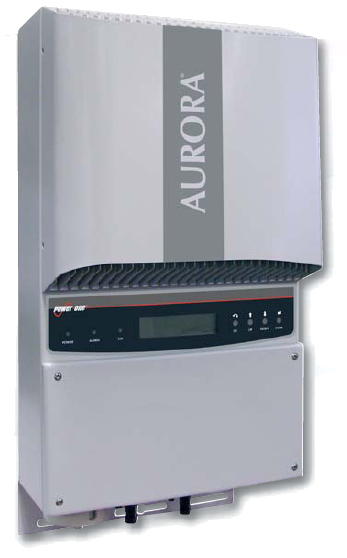

  • Able to respond to quick input voltage change and fast output power response
  • Aggressive MPPT algorithm
  • Wind turbine specific grid-connection controlling algorithm
  • Current controlled PWM inverter technology
  • Maximum efficiency greater than 94%
  • Provides both LCD and LED displays for monitoring various parameters
  • Compact and light design
  • Wide input voltage range
  • Complies with standards of UL1741



Monitoring System

Monitoring System

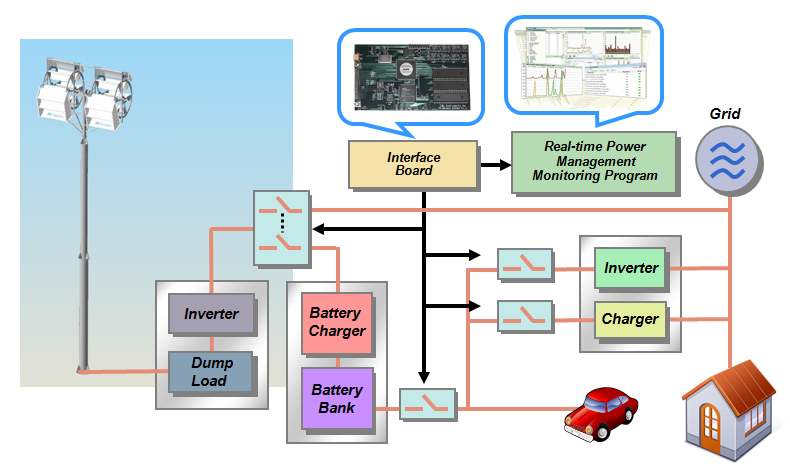

  • Real-time data acquisition and conversion
  • Advanced control algorithm for sequencing and protection
  • RF and serial communications
  • Real-time data display : wind data, status, power, etc.
  • Data analysis and report



Tower and Foundation

Tower and Foundation

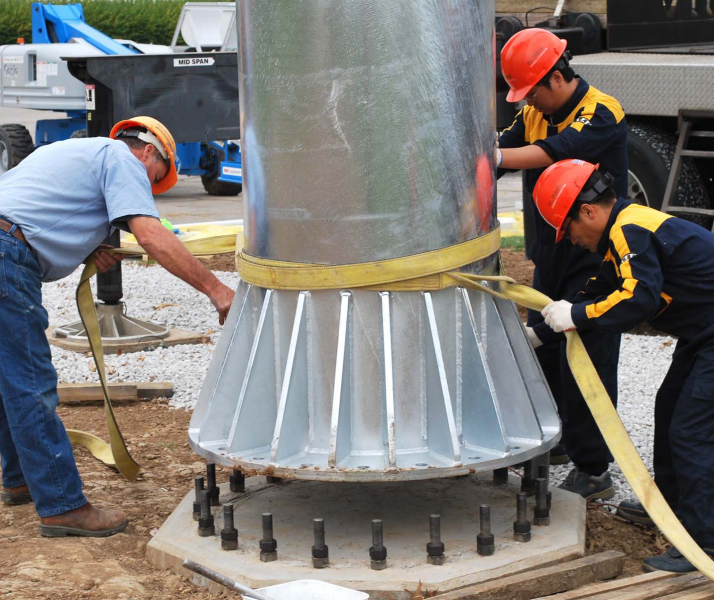

  • Support wind turbine via flange strong enough for extreme winds
  • Extreme and fatigue analysis of tower shell, welded and bolted connections of the tower
  • Dynamic analysis of total system : no vibrations
  • Foundation assessment performed for an assumed bandwidth of soil parameters



Batteries

Batteries

  • Charge battery by DC for independent grid, e.g. farming application
  • Load shedding for grid-tie application via smart meter
  • Enough cycles for charging/discharging
