VQ WindJet™ Design & Specifications

Patented Breakthrough Turbine Design

Years of intense R&D by brilliant minds and thorough field testing have produced many innovations and several patents in the design and manufacture of small wind turbines.

Patented Breakthrough Turbine Design

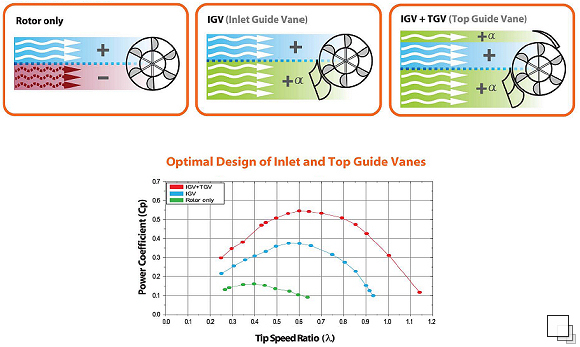

The performance the WindJet turbine is optimized in the multi-space formed by the rotor inlet angle, the blade solidity and the diameter-height ratio with the guide vane angle. The Inlet Guide Vane (IGV) plays an essential role in minimizing the effect at negative torque generated and accelerating the incoming jet into the rotor blade. The Top Guide Vane (TGV) recovers the energy by collecting the air streamlines into the rotor blade again, which otherwise would simply pass by. The chart shows how rotor efficiency is increased up to 54% with IGV and TGV.

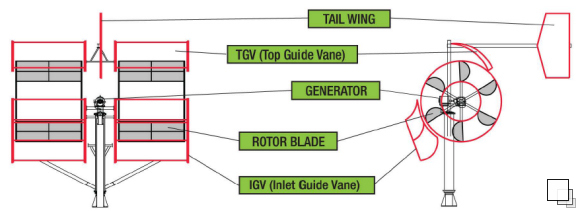

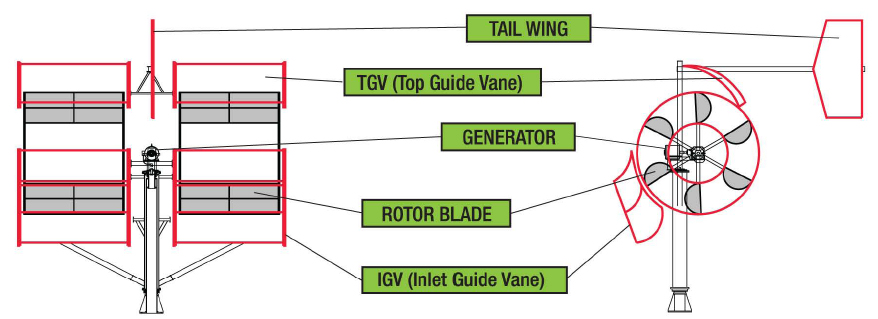

Guide Vane Innovation

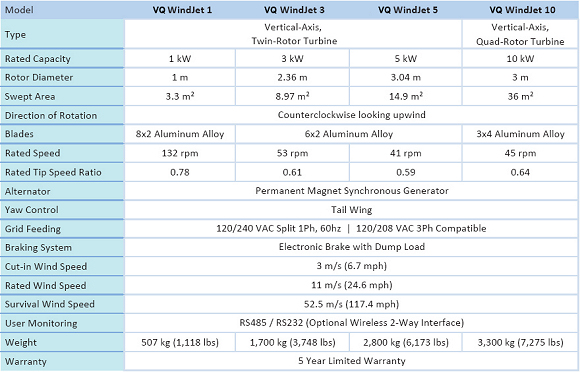

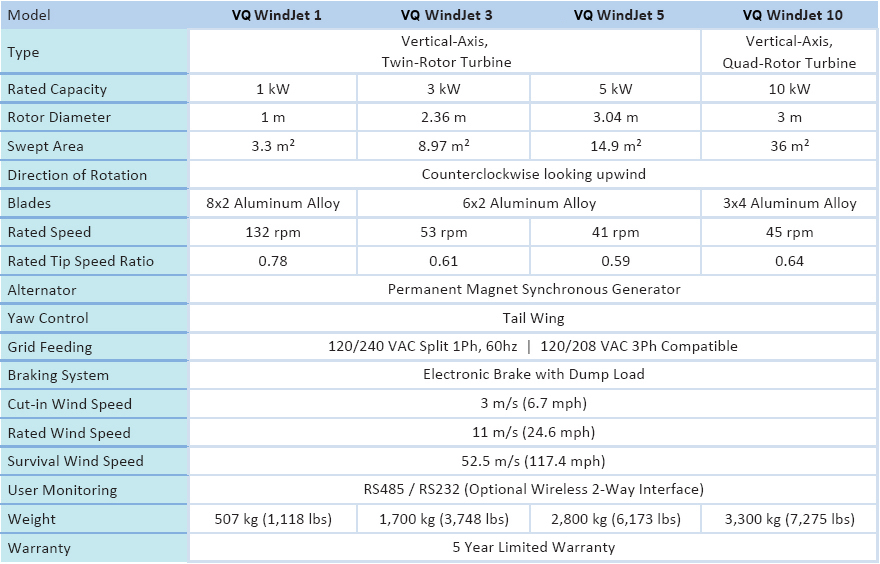

Detailed Specifications

Detailed Specifications
